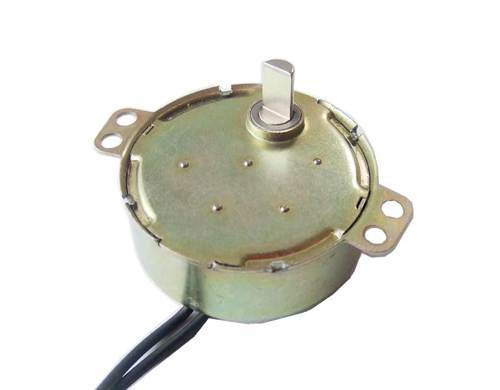

49TYJ

Rated voltage	24V, 36V, 100V, 120V, 220/240V	Dielectric strength	1500VAC/min
Power consumption	<4W	Noise	<45db
Input current	<25mA	Coil temperature rise	60K
Rated frequency	50/60Hz	Insulation class	E
Speed	2.5/3, 5/6, 10, 15, 33/40rpm	insulated electricity power	1800V/1s
Starting voltage	10, 5, 3, 2, 1.3Kgf.cm	FC	CW,CCW or free direction
Insulation resistance	>100M

application scope: mainly used in wind guiding part, hand moving part of fan and all kinds of craftwork, lamps and lanterns and toys ,wind direction motor of air conditioner and turnplate motor of microwave oven

notes:

Working voltage & frequency , rotate speed, The output shaft and color & length of conducting wire can be produced according to clients request.
