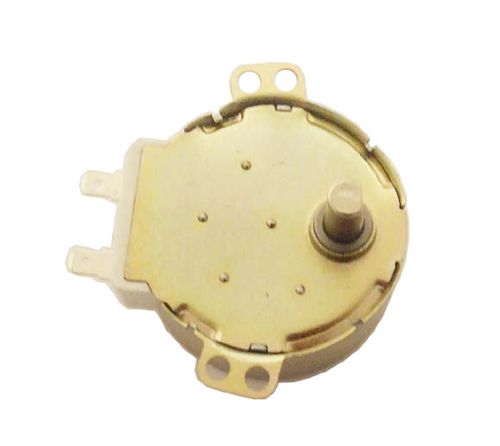

49TYJ-1 |
 |
main technical paramater:
|
Rated voltage |
24V, 36V, 100V, 120V, 220/240V |
Dielectric strength |
1500VAC/min |
|
Power consumption |
<4W |
Noise |
<45db |
|
Input current |
<25mA |
Coil temperature rise |
60K |
|
Rated frequency |
50/60Hz |
Insulation class |
E |
|
Speed |
2.5/3, 5/6, 10, 15, 33/40rpm |
insulated electricity power |
1800V/1s |
|
Starting voltage |
10, 5, 3, 2, 1.3Kgf.cm |
FC |
CW,CCW or free direction |
|
Insulation resistance |
>100M  |
|
|
| | application scope: Mainly used for wind guiding part, hand moving part of fan and all kinds of craftwork, lamps and lanterns and toys ,wind direction motor of air conditioner and turnplate motor of microwave oven.
|
|
